Hybrid Typhoon is a complete mobile hygiene station for cleaning of open plant surfaces within various applications within the Food and Beverage industry. Hybrid Typhoon is equipped with the DuoBlock, which allows 2 detergents, one of which could be mixed. The mobile design allows reaching and cleaning every corner of your food production premises.
The Typhoon has an integrated water pump supplying a water pressure of 25 bar/ 305 psi. It has built-in security with dry-run protection and temperature protection.
Documents
Directions for use 110004487ZM
Spare part list 110004487
How to change the Display from 25 bar to 40 bar mode
Product sheet
User Guide
Technical specifications
Service check list
Addendum to Hybrid Typhoon CRNE 1-27 3x380-500V 50/60Hz
Software
Hybrid Typhoon Display v1.04
Last updated 0 days ago.
Notes:
Hybrid Typhoon & Hybrid Typhoon Medium Pressure
Change log:
| Version | Changes | Released |
|---|---|---|
| 1.04 | Both Ecolab and Nilfisk variants are now available. Different software but same functionality. | |
| 1.03 | Phase sequence detection implemented, for detection of correct function of compressor. | |
| 1.02 | Readout of software version possible when OK button is pressend and unitis in “OFF” (red button). Minor bug fixes. | |
| 1.01 | Version number changed so that it is possible to differentiate between no communication and version 1.00 | |
| 1.00 | Initial version of software. |
Software Upgrade Tool FWU v200
Last updated 0 days ago.
Notes:
Valid for the following models:
Hybrid-P Multi Booster BF16, BF24, BF32
Hybrid Typhooon & Hybrid Typhoon Medium Pressure
Change log:
| Version | Changes | Released |
|---|---|---|
| 200 |
Videos
How to service Hybrid 7 block

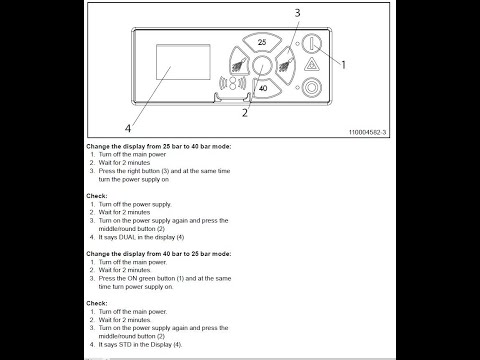

How to change between 25 bar and 40 bar in the display
How to use Typhoon Nilfisk FOOD
How to service check valve Hybrid Typhoon
How to set up a flow switch
Grundfos Small CR Shaft Seal Repair
Tips&Tricks to remove an o ring
How to clean an injector
Safety first - pressure locked couplings
Comparison Test
Cleaning of Open Plant
Accessories
Gallery
Available models
| Model | Description | Item Number |
|---|---|---|
| MT | Typhoon with compressor, 50Hz | 110004510 |
| MT | Typhoon with compressor, 50Hz and user pack | 110004511 |
| MT | Typhoon with compressor, 60Hz | 110004516 |
| MT | Typhoon with compressor, 60 Hz and user pack | 110004517 |
